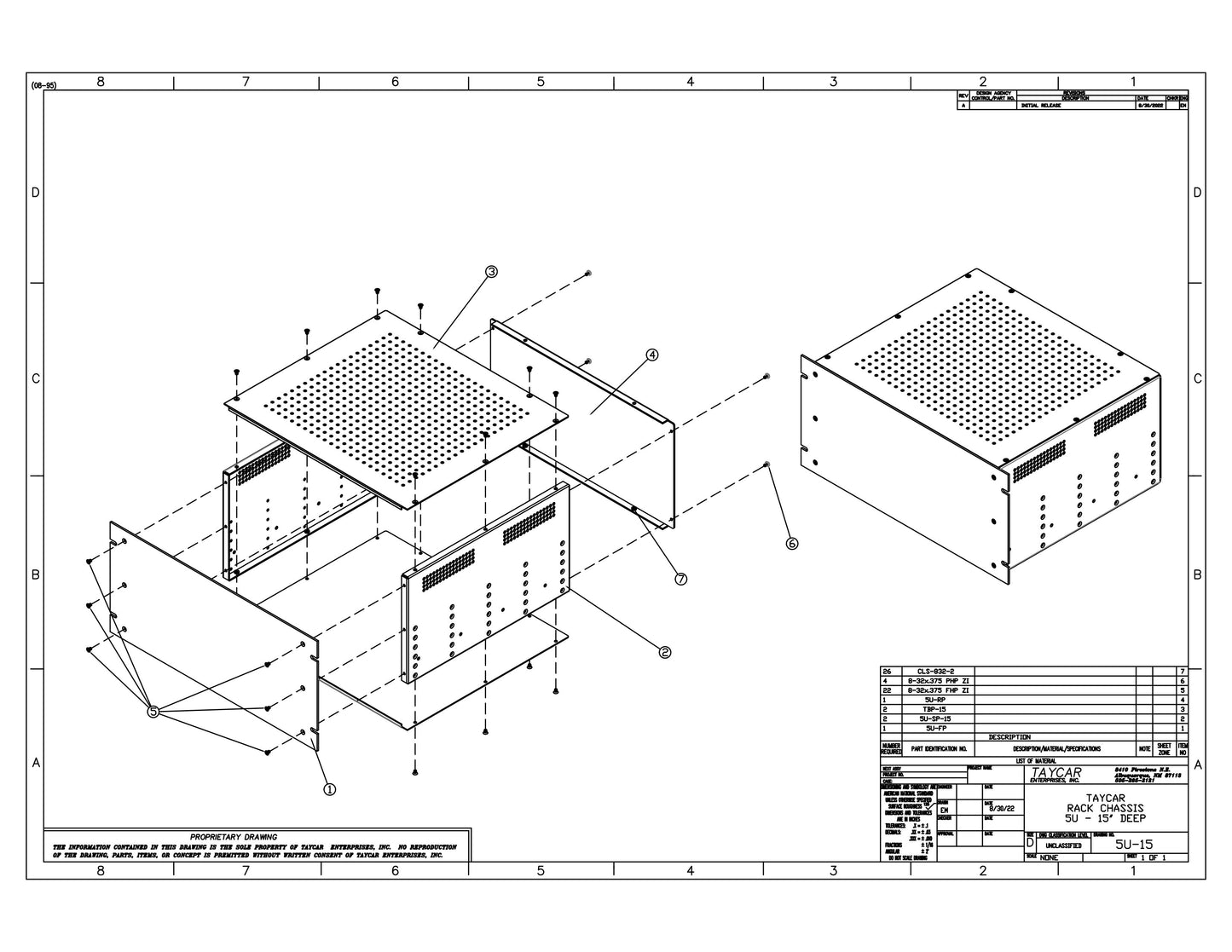

5U RACK MOUNT CHASSIS

** STANDARD RACK MOUNT CHASSIS CONFIGURATION **
** GOLD ALODINED PER MIL-C-5541C **
** SELF CLINCHING STAINLESS STEEL HARDWARE THROUGH-OUT **
** MULTIPLE SHELF MOUNTING POSITIONS **
** STANDARD PERFORATED TOP PANEL **

T-_____-_____-_____
FIRST BLANK: INDICATES HEIGHT OF FRONT PANEL: 1U, 2U, 3U, 4U, 5U, or 6U (“U” IS EQUAL TO 44.45mm OR 1.75”)
SECOND BLANK: INDICATES DEPTH OF CHASSIS: 13”, 15”, 17”, 19”
THIRD BLANK: INDICATES SHELF AND SETBACK FROM FRONT PANEL (2U to 6U )
- “N” NO SHELF
- “0” SHELF WITH NO SETBACK (FLUSH WITH FRONT PANEL)
- “1” SHELF WITH 1” SETBACK
- “2” SHELF WITH 2” SETBACK
- “3” SHELF WITH 3” SETBACK

FRONT PANEL IS MADE FROM .125 5052-H32 ALUMINUM
SIDE AND BACK PANELS ARE MADE FROM .090 5052-H32 ALUMINUM
TOP AND BOTTOM ARE MADE FROM .063 5052-H32 ALUMINUM
